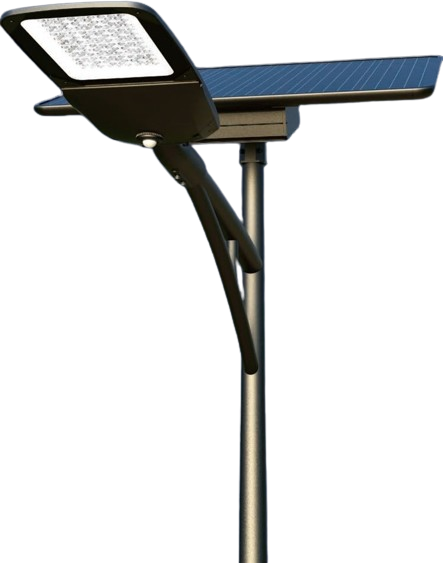

HighLight HL-SL-AUR™

Description

The SolarPath HighLight HL-SL-AUR™ is the premier LED solar illumination technology in its class today. Ultra- bright/High Intensity LED lighting means a total lighting solution for any need. This product has both a solar engine and a street light. The HL-SL-AUR’s battery and control is on the LED head which allows this product to be used for warehouses, roads, roofs, and on walls. Once the product is installed, it can be controlled via a remote control.

Features

•Low installation and maintenance costs
•IP67 Rating
•High performance Cree 1W LEDs with 140lm/W
•Light dimming engine
•Led’s operating life time over 150,000 hours at maximum output
•Dedicated optical lens per LED for enhanced spread and uniformity
•LED strings shunt protection
•Ideal for solar or energy saving electrical applications
•Battery enclosure
•Aluminum housing for efficient heat dissipation
•Approved IDA
•LM 79/80

Technical Specifications
Lighting and Operation
Lighting technology LED Street Light Technology
Brightness up to 8,400 lumens
Default Color Temperature 5,500°K (other may be available upon request)
 Available Distribution types III
Standard Operation Features Automatic day/night detection

Battery deep discharge and overcharge protection

False activation prevention logic

Computerized self-learning seasons change detection

Auto-adjusting battery charge algorithm according to ambient temperature sensing

Operation Time Up to 72 hours (per charge cycle, programming dependent)
Battery Enclosure Integrated in lighting fixture
Energy Collection and Storage
Solar panel type Mono/Poly Crystalline Silicon
Battery type Lithium
Voltage/Current 12 VDC
Materials
Body Galvanized Steel/Stainless steel and Aluminum
Dimensions (main body) Depends on configuration
Unit Weight Depends on configuration
EPA Depends on configuration
IP Rating IP67
Optional Features
Integrated Motion Option Allows for flexible energy saving programming for location with low insulation levels and extreme weather conditions.
Spec Sheet

Spec Sheet

Installation manual

Installation manual

IES Files

IES FILES
