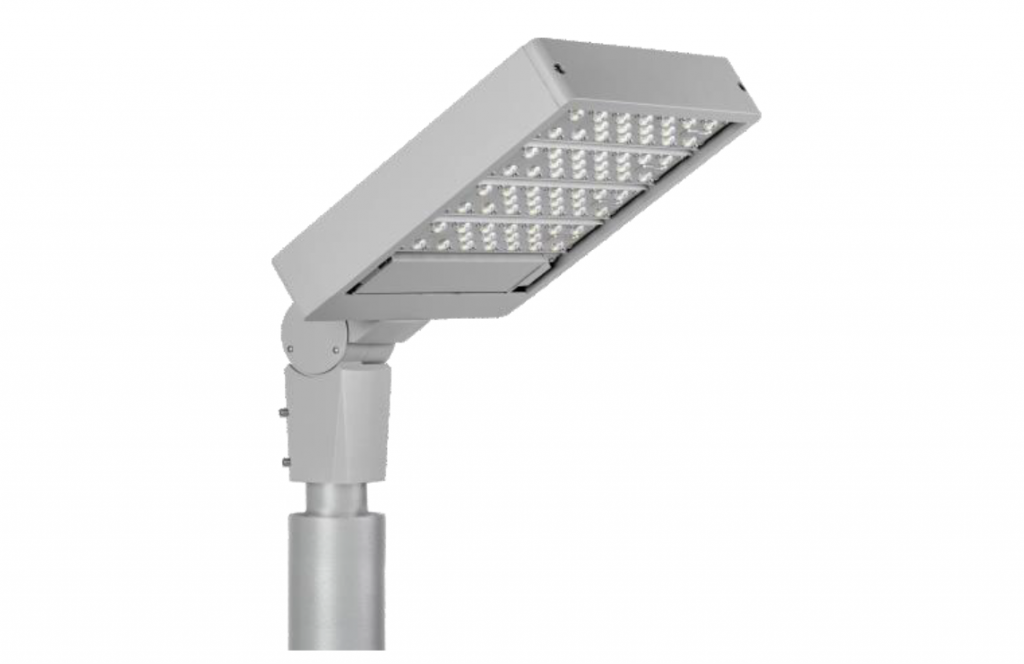

Gama L Series™

Description

The GAMA-L series offers exacting illumination performance featuring advanced LED optical design and multiple light distribution options

Key Features

? Modular design allows for easy installation, replacement and maintenance. This design also creates a chimney effect which provides exceptional thermal management.
? Corrosion resistant polyester powder painted 100?m thickness.
? Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.
? Over 20 optical lenses are available for virtually any application.
? Slipfitter with +/- 90 degree of adjustment for leveling.
? Interchangeable with the other GAMA Series with a bracket change.
? Multiple lighting control options are available, e.g. DALI, 1-10V.
? 10 years limited warranty available.

Technical Specifications


L Series™

Power 30-320W
Input 120-277VAC or 220-240VAC or 347-480VAC or 12-24VDC
PF >0.95
THD <20%
L85 >60,000H
Operating Temperature -40F- 122F
Efficacy 120-140lm/W
ANSI CCT 3000K/4000K/5000K/5700K
Min CRI 70* or 80 or 85
IP Rating IP67
SPD  10KA* or 20KA
Dali Optional
1-10V Optional
Photocell  /
Smart Control /
Optic(IESNA) Type I, Type II, Type III, Type IV, Type V
Color Options  Grey/Black/Bronze/White


Spec Sheet

Spec Sheet

IES

Download IES Here
