Gama D Series™

Description

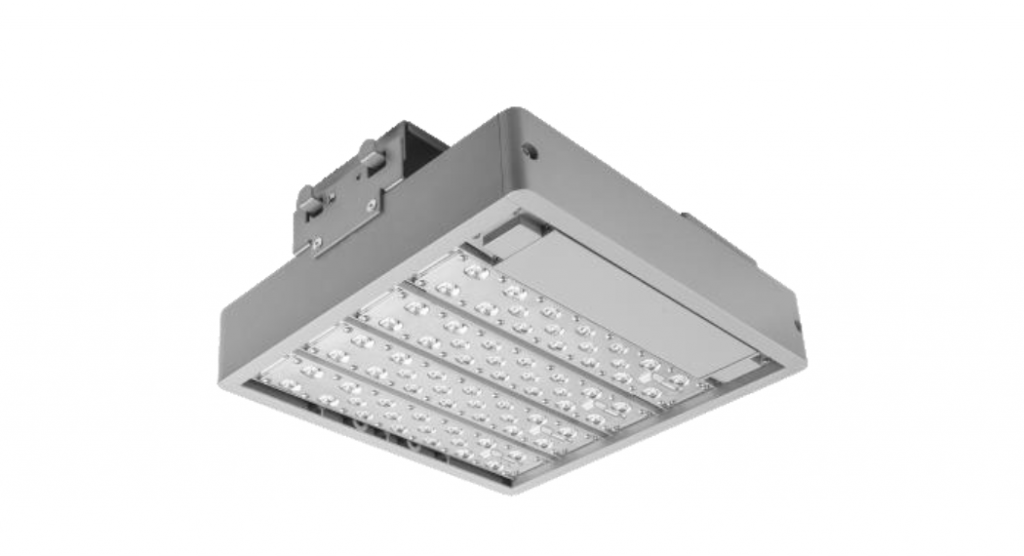

GAMA-D is an ideal solution for surface mount or suspended installations with modular and a low profile design delivering high-efficacy lighting.

Key Features

? Modular design allows for easy installation, replacement and maintenance.
? Corrosion resistant polyester powder painted 100?m thickness.
? Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.
? Over 20 optical lenses are available for virtually any application.
? Surface mount.
? 3/4″ pendent rod option available.
? Interchangeable with the other GAMA Series with a bracket change.
? Multiple smart lighting control options are available, e.g. photocell, motion
sensor, DALI, 1-10V.
? 10 years limited warranty available.

Technical Specifications

	Gama D Series™
Power	30- 320W
Input	120-277VAC or 220-240VAC or 347-480VAC or 12-24VDC
PF	>0.95
THD	<20%
L85	>60,000H
Operating Temperature	-40F- 122F
Efficacy	120-140lm/W
ANSI CCT	3000K/4000K/5000K/5700K
Min CRI	70* or 80 or 85
IP Rating	IP67
SPD	10KA* or 20KA
Dali	Optional
1-10V	Optional
Photocell	Optional
Smart Control	Optional
Optic(IESNA)	Type I, Type II, Type III, Type IV, Type V
Color Options	Grey/Black/Bronze/White
