Bright B™

Description
Key Features
Technical Specifications
Spec Sheet
IES
Description

The BRIGHT-B fixture is an ideal LED solution to replace existing fluorescent troffers with multiple mounting options, available in different power range.

Key Features

? Compact and sleek design.
? Rugged extruded aluminum housing.
? Corrosion resistant polyester powder painted 100?m thickness.

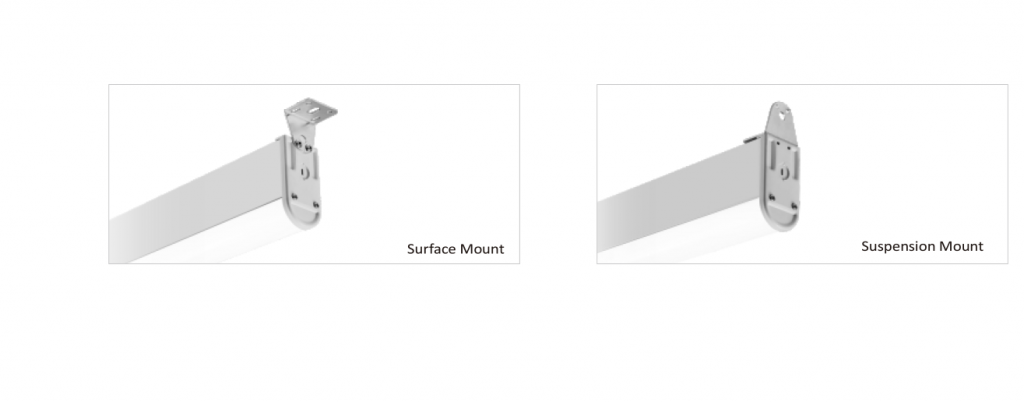

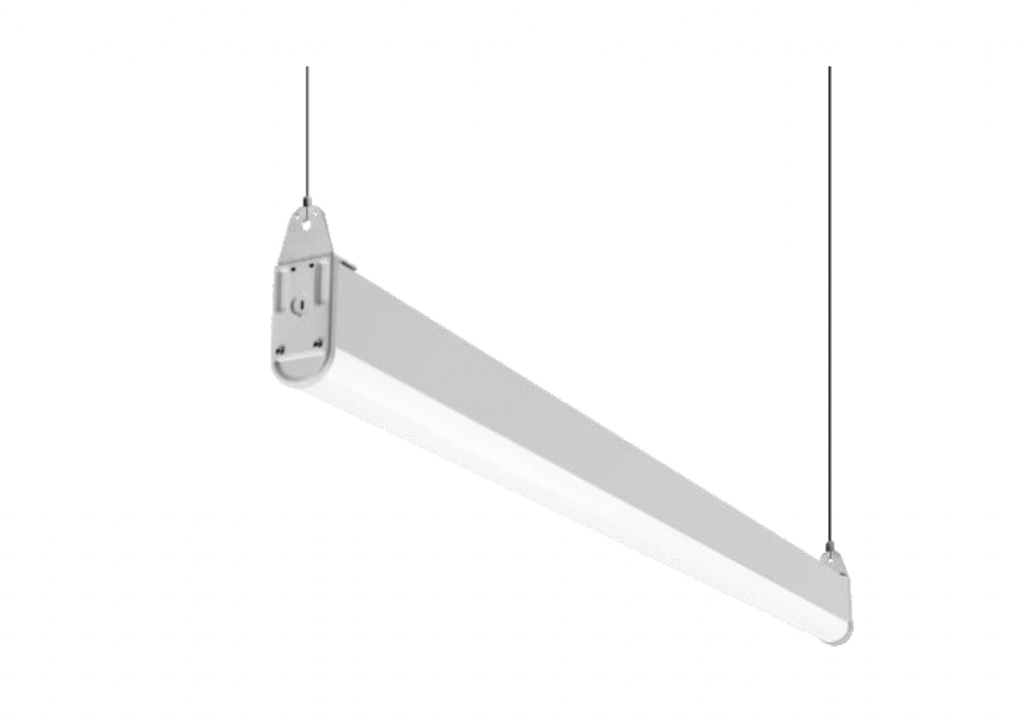

? Surface mount and suspension mount available.
? Multiple units are linkable.
? Multiple lighting control options are available, e.g. motion sensor, 1-10V.
? Emergency Power Supply (EPS) available.
? 5 years limited warranty available.

Technical Specifications


Bright B™

Power 40/60/90W
Input 120-277VAC or 220-240VAC or 347-480VAC or 12-24VDC
PF >0.95
THD <20%
L85 >60,000H
Operating Temperature -40F- 122F
Efficacy 110-130lm/W
ANSI CCT 4000K/5000K
Min CRI 80
IP Rating IP20
SPD  Optional
Dali /
1-10V Optional
Photocell  /l
Smart Control Optional
Optic(IESNA) Type V
Color Options  White


Spec Sheet

Spec Sheet

IES

Download IES Here
