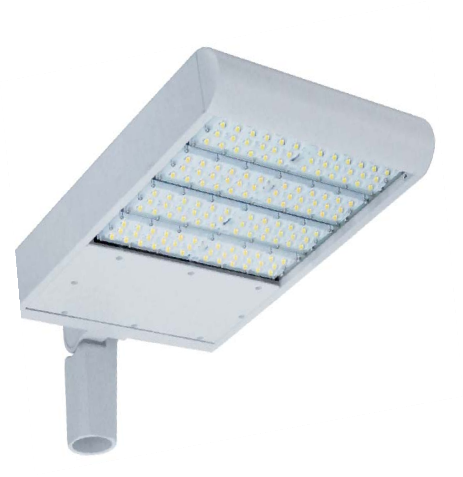

ATHENA™ - SolarPath Sun Solutions

ATHENA™

Description

ATHENA series light is perfect for outdoor area lighting providing significant energy and maintenance savings while improving illumination performance.

Key Features

High efficiency with low operating
Multiple light distributions to replace discharge lamps from 75W to 2OOOW.
Hi energy savings compared to systems with traditional HID luminaires.
Dimmable for even more energy savings.
Modular design for easy hassle-free maintenance and component hardware replacement.
Long life-span thanks to robust design and separated thermal management system of Light engine and power supply.
IP67 and suitable for wet location

Technical Specifications

	Athena™
Power	30-720W
Voltage	UL 90-305V/ UH 249-528V*
PF	>0.95
THD	<20%
L85	>150,000H/>50,000H
Operating Temperature	-40F- 122F
Efficacy	143-155lm/W
ANSI CCT	2700K/3000K/3500K/4000K/5000K/5700K/6500K
Min CRI	70* or 80 or 85
IP Rating	IP67
SPD	10KA* or 20KA
Dali	Optional
1-10V	Optional
Photocell	Optional
Smart Control	Optional
Optic(IESNA)	Type I, Type II, Type III, Type IV, Type V
Color Options	Grey/Black/Bronze/White
