SRL ™

Description

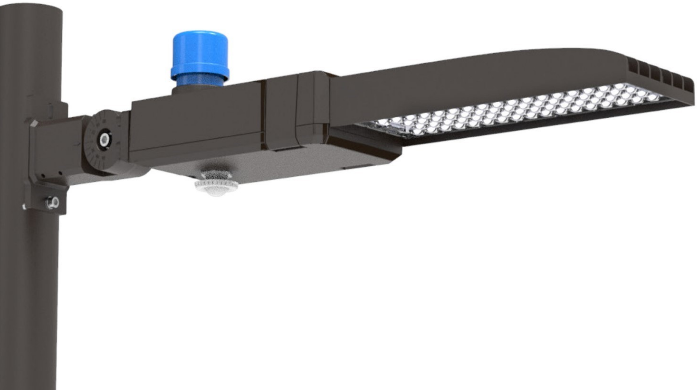

SRL series area light is perfect for outdoor area lighting, providing significant energy and maintenance savings while improving illumination performance.

Key Features

? High lumen output and high mounting height solution.
? IP 66 Die cast housing
? Sleek low profile design, low EPA rating.
? Modular design, easy for installation, replacement and maintenance.
? Compartment release for wring and service..
? Photocell and Motion sensor (optional).
? Mounting: 2.36 in standard mounting diameter.
11 kinds of mounting options.
? Anti-Condensation Valve.
? Electrical/Control: 100-277VAC and 277-480VAC available.
Surge protection: – 10kV Standard
– 20kV Optional

Technical Specifications


SRL™

Power 60-150W
Input 100-277V/277-480V
PF >0.9
L85 >50,000H
Operating Temperature -40F- 104F
Efficacy 140-160lm/W
ANSI CCT 3000K/4000K/5000K
Min CRI >70
IP Rating IP66
SPD  Optional
Motion Sensor Optional
Photocell  Optional
Optic(IESNA) Type I, Type II, Type III, Type IV, Type V
Color Options
Dark Bronze/Grey/Black/White


Spec Sheet

Spec Sheet

IES

Download IES Here
