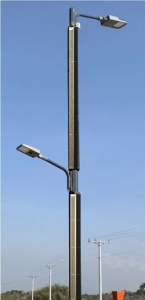

Solar Area Light – HighLight SPWSPL™

The SolarPath HighLight SPWSPL™ is the premier LED solar illumination technology in its class today. Ultra-bright/High Intensity LED lighting means a total lighting solution for any need. The solar panel is wrapped and can be installed on a new or an existing pole. This product has both a solar engine and a LED light. The battery and controller are on the LED head which allow this product to be used for roads, parking lots, pathways, etc. The lighting fixture can be used up to 80W and can be controlled via remote control.

Key Features
  • Can be installed on an existing pole
  • Low installation and maintenance costs
  • Folding solar panel
  • IP 67 Rating
  • Solar powered outdoor lighting
  • Battery, solar controller are built inside of light
  • Good appearance, small size and lightweight, easy to install
  • Rust-proof, dust-proof and waterproof
  • Energy saving 100% generated from solar less power consumption than traditional
Uses and Applications Guide
  • Streets Lighting
  • Parking Lots
  • Residential Roads
  • Public Parks
  • Sports Lighting
Technical Specifications
Solar Module Parameters
Type High-efficiency Mono-crystalline Silicon
Power up to 560 W
Solar Charge Controller Parameters
Type MPPT (Maximum Power Point Tracking), infrared solar charging controller.
Battery Type and Parameters
MnNiCO Up to 2,160 Wh
LifePO4 Up to 1,198 Wh
LED Light Parameters
Light Source Power 80 W
Lamp Rated Total Luminous Flux A – 1W/140lm
B – 1W/130lm
CCT (Correlated Color Temperature) 3,000°K – 6,000°K
Color Rendering Index (CRI) 81
Light Control Voltage 36 VDC
Control Modes Manual ON/OFF
Automatically ON/OFF
Time Control
Operation profile Depends on installation area, can be programmed with remote control
Lighting Material Die-casting Aluminum
Extended Application Wireless Remote controller
Optional GPRS Integrated Management System(Remote control and monitoring)
Product Size
Light Body 31.4″ x 12.2″ x 4.5″
Solar Panel Depends on Solar Panel wattage
Net Weight
Light Body Depends on LED power
Solar Panel Depends on Solar Panel wattage
Spec Sheet

Download Spec Sheet

IES Files

LED A: Download IES File
LED B: Download IES File

Install Manual

Download Install Manual
