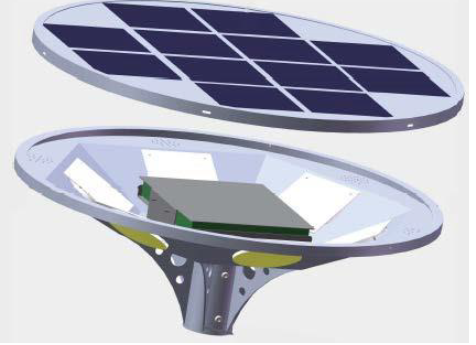

Round Light ™

The design of solar street light / courtyard light absorbs energy from the universe, and combines it with high efficiency solar panel, LEDs, and Lithium battery. It adopts advantage technics such as micro-controller and combines with integrated design to achieve multiple features such as low power consumption but high brightness, long lifespan and maintenance free, meanwhile with waterproof function and great thermal dissipation. The intelligent control can be reprogrammed from the ground with an infrared before and after install. It is one of our great innovation patented products.

Key Features
  • Patent pending integrated design
  • Solar powered outdoor lighting
  • Lithium battery prolongs life and protects environment
  • Modular compact design, easy assembly and maintenance
  • Rust-proof, dustproof and waterproof
  • Two year warranty
Uses and Applications Guide
  • Streets lighting
  • Parking lots
  • Boardwalks
  • Farms
  • Public parks
  • Private gardens
  • Access roads
  • Walking paths
  • Bus stations
Technical Specifications
SP-RL9 SP-RL15 SP-RL 30
Solar Panel
18V  15W
18W 25W 18V 60W
Battery
Type Lithium LiFePO4 battery Lithium LiFePO4 battery Lithium LiFePO4 battery
Lifespan 8-10 years 8-10 years 8-10 years
LED Source
Power 12V 9W 12V 15W 12V 30W
Luminous Flux 1080Lm (TYP) 1800Lm(TYP) 3600Lm(TYP)
Color Temperature 2700~6500K 2700~6500K 2700~6500K
Beam Angle 135×60° 135×60° 120°
Charging Time
By Strong Sunshine 6-8 hours 6-8 hours 6-8 hours
Lighting Time
Full Power
10-12 hours 10-12 hours 10-12 hours
30% saving mode Up to 36 hours Up to 36 hours Up to 36 hours
Recommended Installation
Mounting Height 9.84ft- 13.1ft 9.84ft-16.4ft 16.4ft-22.9ft
Space between light 26.2ft-32.8ft 26.2ft-32.8ft 16.4ft-22.9ft
Material Superior aviation aluminum AL6063-T5. Superior aviation aluminum AL6063-T5. Superior aviation aluminum AL6063-T5.
Warranty 2 years 2 years 2 years
Spec Sheet

Download Spec Sheet
