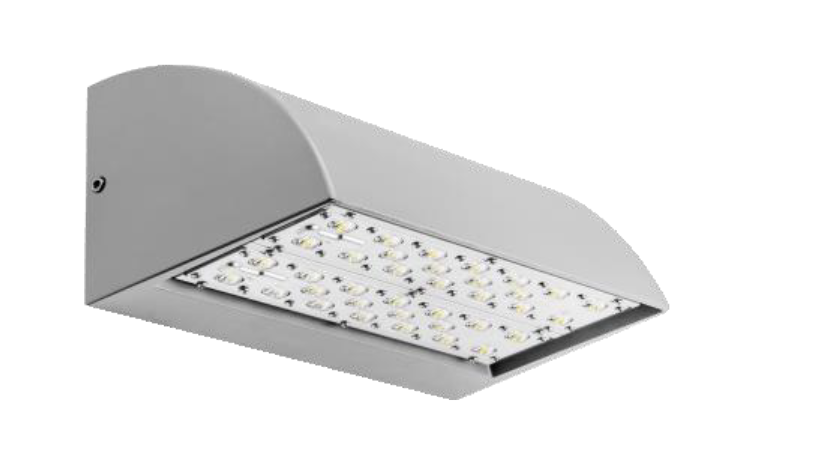

Guard Series™

Description

Preserving the traditional wall pack appearance, the GUARD luminaire is an ideal solution for site lighting application, providing exacting illumination performance and precise optical control.

Key Features

? Traditional wall pack appearance with advanced LED system.
? Corrosion resistant polyester powder painted 100?m thickness.
? Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.
? Over 20 optical lenses are available for virtually any application.
? High quality LEDs, driver and components, e.g. MOLEX, WAGO connectors.
? Multiple lighting control options are available, e.g. DALI, 1-10V.
? Emergency Power Supply (EPS) available.
? 10 years limited warranty available.

Technical Specifications


Guard  Series™

Power 30-80W
Input 120-277VAC or 220-240VAC or 347-480VAC or 12-24VDC
PF >0.95
THD <20%
L85 >60,000H
Operating Temperature -40F- 122F
Efficacy 120-140lm/W
ANSI CCT 3000K/4000K/5000K/5700K
Min CRI 70* or 80 or 85
IP Rating IP65
SPD  10KA* or 20KA
Dali Optional
1-10V Optional
Photocell  Optional
Smart Control Optional
Optic(IESNA) Type I, Type II, Type III, Type IV, Type V
Color Options  Grey/Black/Bronze/White


Spec Sheet

Spec Sheet

IES

Download IES here
