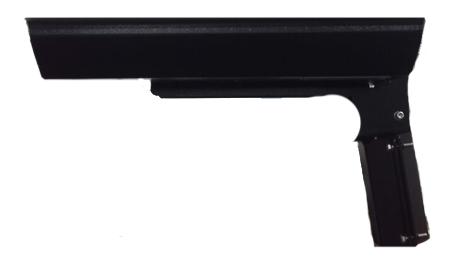

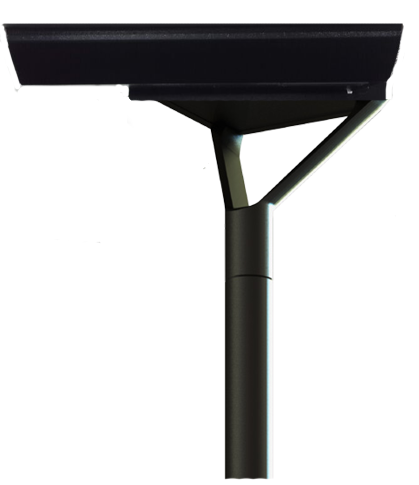

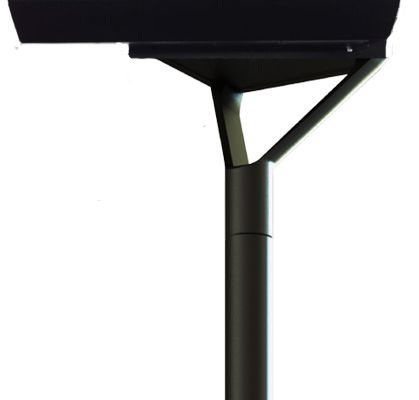

Solar Area Light – SUNLIGHT™

The SolarPath Highlight SUNLIGHT ™ Series is the ideal LED spar illumination technology for parking lot, street, pathway, perimeter and site lighting applications. Utilizing mesh networking, high output LEDs, and ultra-efficient solar panels – all while maintaining the compact design- the HighLight SUNLIGHT™ offers unparalleled balance of cost and performance.

Key Features
  • Compact design for easy and safe installation
  • Ultra-Bright homogeneous LED light distribution
  • Strong Weather-proof housing design
  • Vandel resistant
  • Recommended installation hight 20ft (6m)
  • Complies with Fish & Wildlife conservation regulations
Uses and Applications Guide
  • Streets lighting
  • Parking lots
  • Boardwalks
  • Farms
  • Public parks
  • Private gardens
  • Access roads
  • Walking paths
  • Bus stations
Technical Specifications
Lighting and Operation
Lighting technology Estrema LED Street Light Technology
Brightness up to 1,200 lumens
Default Color Temperature 5,500°K (other may be available upon request)
 Available Distribution types I, II, III, IV, V
Standard operation Features Automatic day/night detection

 Battery deep discharge and overcharge protection

 False activation prevention logic

Computerized self-learning seasons change detection

Auto-adjusting battery charge algorithm according to ambient temperature sensing

Operation Time up to 72 hours (per charge cycle, programming dependent)
Energy Collection and Storage
 Solar panel type Mono Crystalline Silicon, 50W (Location Specific)
Battery type  Deep Cycle AGM / Gel-Cell
Voltage/ Current  12VDC
Materials
Body Steel or Aluminum
Dimensions (main body) L30.2? W 26? H12.9? / L76.7cm W66.4cm H32.8cm
Dimensions (pole mount diameter) Inner: 2.46? / 6.25cm
Unit Weight Aluminum 28.66lb / 13kg Steel 79.37lb / 36kg
EPA 5
Packed dimensions L57.3? W 29.5? H18.3? / L 1455mm W 750mm H465mm
Optional Features
EXCEL ControlTM package Allows full control of the system, alarms and event monitoring and statistical information transmission over long range, secure wireless connection.
Spec Sheet

Download Spec Sheet

IES FIles

Download IES File

Ordering Guide

Download Ordering Guide
