SP-T24 Tunnel Lighting System ™

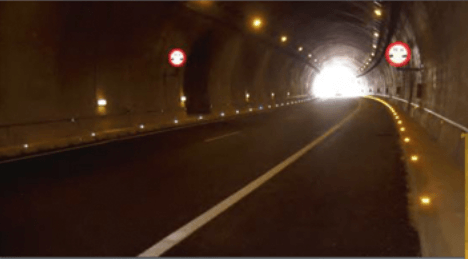

SP-T24 is projected for tunnels illumination. Robust construction. High luminosity day or night. Easy replacement, low maintenance and water proof.
Technical Specifications
| TECHNICAL SPECIFICATIONS | |
| Mode of Operation | Always on
Intermittent Sequential |
| Dimensions | L=3.14in x W=3.8in x D=1.10in |
| Protection | IP68 |
| Material | Aluminum |
| Fixation Points |
2 |
| Power | 24V |
| OPTICAL CHARACTERISTICS | |
| Available colors Lighting intensity (mcd) min / max / angle | White: 6o00 mcd / 8600 mcd 45°
Blue: 4190 mcd / 6020 mcd 30° Red: 4180 mcd / 6860 mcd 30° Green: 4190 mcd / 6020 mcd 45° Amber: 5800 mcd / 8200 mcd 30° |
| Number of LED’s: | 12 LED’s (Unidirectional )
24 LED’s (Bidirectional) 10 LED’s (lines on top) 9 LED’s (Arrow on top) |
Spec Sheet
