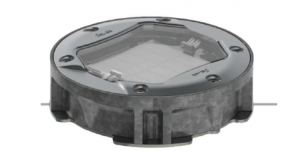

SPI1™

SPI1 road stud is ideal for countries with low sun exposure due to its high performance photovoltaic solar module. It has robust
construction, making it suitable for harsh conditions and now plow resistant. This road stud has low power RF with 868MHz network
communication. The SPI1 evolution technology applied to SPI1 increase the performance of solar power studs with energy storage by
battery or capacitor. The main advantage of i-stud is the use of microcontroller technology inside each stud, which allows several
beneficial features and control options even after installation.

Key Features
  • Ideal for countries with low sun exposure
  • Snow plow resistant
  • Low power RF with 868 MHz network communication Robust construction, suitable for harsh conditions
  • SLEEP mode to prevent discharge during storage / transport Constant brightness during all functioning period Protection against deep discharge of the batteries
  • High performance photovoltaic solar module
  • Energy storage in super capacitors or batteries
  • Internal prismatic system
  •  Up to 3000ft visibility distance due to high intensity led’s
  • Many led’s color options for all kind of applications
  • Easy maintenance

SPI1 Evolution Features

  • Wake Up/Sleep Function
    Allows the stud to stay in “sleep” mode before the application starts
  • Define the working period
    Set up the number of hour that the product should work=Operation mode Flash/
    always on
  • Operation Mode Flash/Always ON
    Switch from “flash to always on” and vice versa
  •  Flash Rate
    Adaptation of the flash rate after installation.
  •  Night Level Detection
    Adjustment of the lighting level detection
  •  Operation Mode Uni or Bi-directional
    Modify the light direction to Uni or Bi-directional.
  •  Low temperature
    Detects the possibility of ice forming on roads and change the LEDs color to warn
    drivers about the dangerous weather conditions.
  • Log File
    If a problem with the stud is detected the unit is able to make an internal log to
    discover what are the causes of the problem.
Uses and Applications Guide
  • Lane deliniation
  • Shoulder marking
  • Lane dividers
  • Safety guide rails
  • Curves and turns
  • Crosswalks
  • Speed humps
  • Traffic circles / islands
  • General traffic calming
  • Security barricades
  • Marking of underground cables
  • Fire hydrant marking
Technical Specifications
Electrical Features
Power Supply
Mono-Crystalline
Working Temperature
-13F – 185F
Optical Features
LED Quantity 2 LEDS(Unidirectional) 4 Led’s (Bidirectional)
LED Type .19in
LED Colors White, Warm White, Red, Amber, Green, Blue
Viewing Angle 15º
Mechanical Features
Material Stainless Steel, Aluminum and Polycarbonate
Protection Index IP68, IK10
Dimensions Ø190 x 2.14in
Spec Sheet

Download Spec Sheet
