Shine™

Description

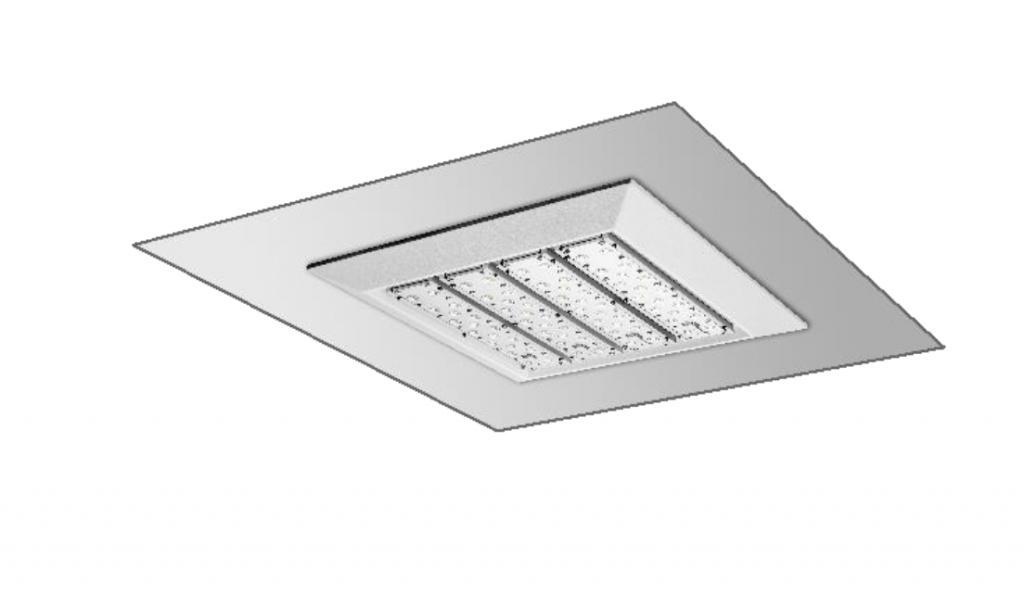

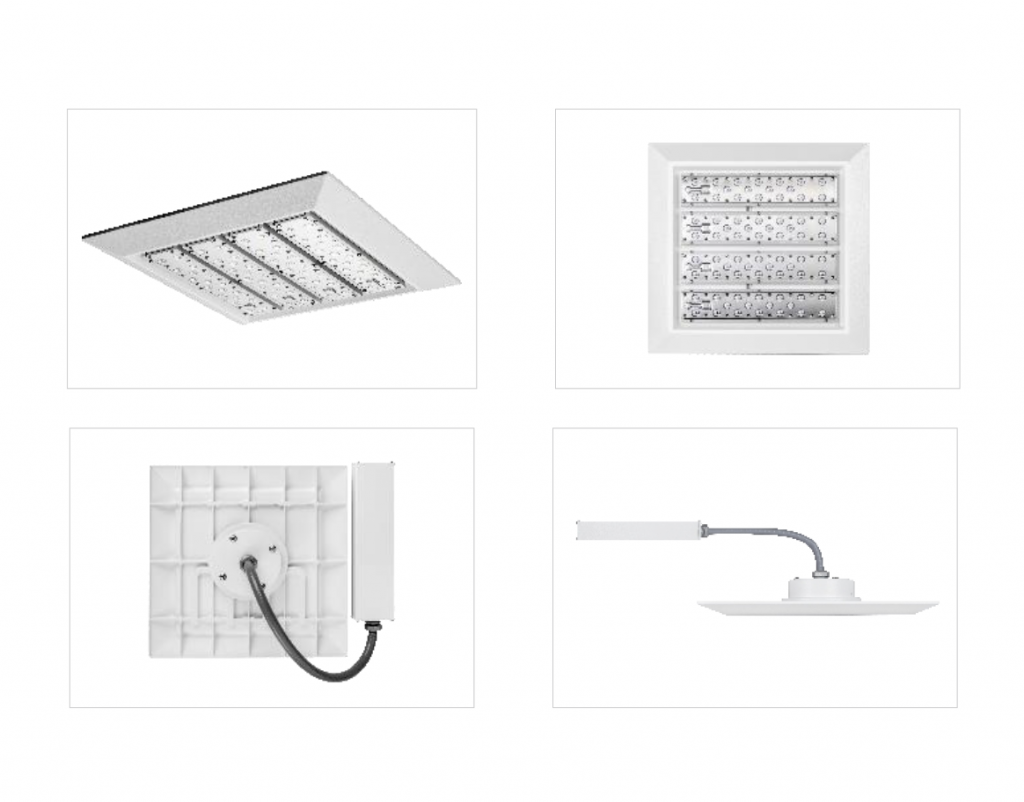

The SHINE Series, featuring its patented, innovative installation and flush-mount design, is perfectly suitable for gas station lighting or other applicable mounting.

Key Features

? Ideal solution for gas station lighting application.
? Slim appearance with 25mm thickness.
? Modular design allows for easy installation, replacement and maintenance.
? Precision lens system provides optimized illumination for intended area.
? Flush mount to ceiling to prevent the build-up of dust on the fitting.
? Multiple lighting control options are available, e.g. DALI, 1-10V.
? 10 years limited warranty available.

Technical Specifications


Shine™

Power 120/160W
Input 120-277VAC or 220-240VAC or 347-480VAC or 12-24VDC
PF >0.95
THD <20%
L85 >60,000H
Operating Temperature -40F- 122F
Efficacy 120-140lm/W
ANSI CCT 3000K/4000K/5000K/5700K
Min CRI 70* or 80 or 85
IP Rating IP67
SPD  10KA* or 20KA
Dali Optional
1-10V Optional
Photocell  Optional
Smart Control /
Optic(IESNA) Type I, Type II, Type III, Type IV, Type V
Color Options  White


Spec Sheet

Spec Sheet
