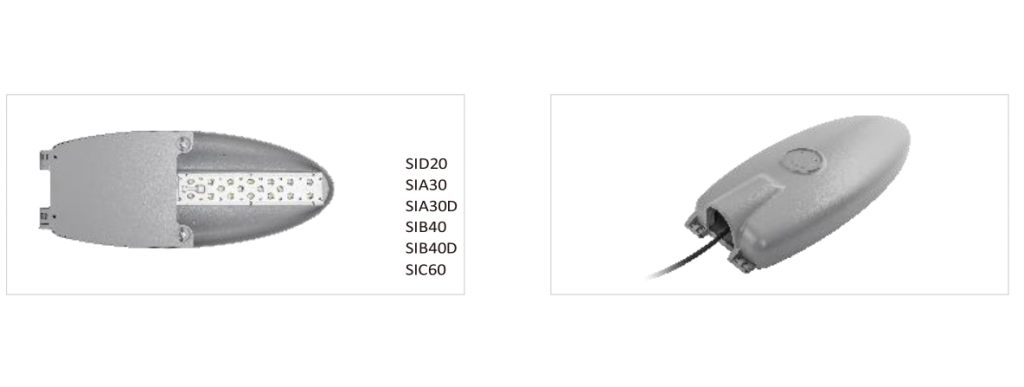

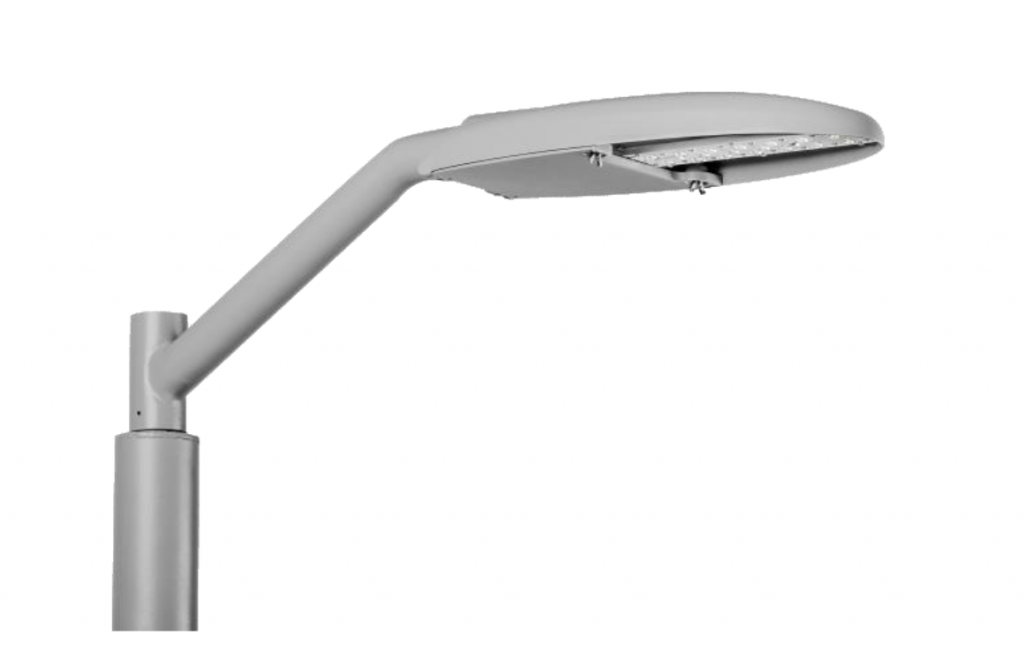

Luma Series™

Description

Designed for durability and ease of installation, the sleek external design prevents build-up of dust or potentially damaging airborne material on the fitting.

Key Features

? Compact & sleek design.
? Tool-less entry to driver compartment.
? Meets 3G vibration per ANSI C136.31-2010.
? Corrosion resistant polyester powder painted 100?m thickness.
? Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.
? Adjustable for 1 5/8-2 3/8″(42mm-60mm) O.D. tenon.
? Multiple smart lighting control options are available, e.g. photocell, motion sensor, DALI, 1-10V.
? 10 years limited warranty available.

Technical Specifications


Luma™

Power 20-60W
Input 120-277VAC or 220-240VAC or 347-480VAC or 12-24VDC
PF >0.95
THD <20%
L85 >60,000H
Operating Temperature -40F- 122F
Efficacy 120-140lm/W
ANSI CCT 3000K/4000K/5000K/5700K
Min CRI 70* or 80 or 85
IP Rating IP67
SPD  10KA* or 20KA
Dali Optional
1-10V Optional
Phtocell  Optional
Smart Control Optional
Optic(IESNA) Type I, Type II, Type III, Type IV, Type V
Color Options  Grey/Black/Bronze/White


Spec Sheet

Spec Sheet

IES

Download IES Here
