Linelight R8RGB™

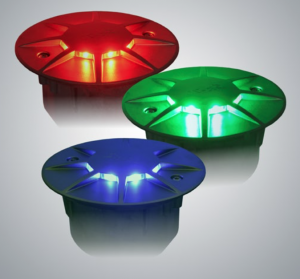

With a variety of LED colors the LineLight-R8RGB can be configured to change colors as needed – an ideal feature for applications such as parking lot entrances, lane delineation and toll plaza lane signaling. Adjustable luminance levels. Programmable Flashing, sequential flashing or steady lighting and timer configurations.

Key Features

Incredibly durable and long lasting:

  • Stainless steel body
  • Military-grade high mechanical resistance design – resistantto tanks, trucks, snow plows and other heavy machinery
  • Highcompressionstrength(1000kg/cm)
  • Absolute water resistance (IP68)Flexible and Customizable:
  • With a variety of LED colors the R1 can be configured to change colors as needed – an ideal feature for applications such as parking lot entrances, lane delineation and toll plaza lane signaling.
  • Adjustable luminance levels
  • ProgrammableFlashing,sequentialflashingorsteadylighting and timer configurations
  • Optional PC, RF and GSM Remote controlEasy maintenance:

    • A fixed base and a removable main unit body allows for easy maintenance if needed

Uses and Applications Guide
  • Tunnels,parkinglots,indoorspaces,walkways
  • In-Ground signaling applications (parking lot entrances, toll plaza lane control etc.)
  • Areas with inclement weather conditions (coastal roads, foggy areas, wet and rainy regions, etc.)
  • Crosswalks, bike and pedestrian lanes
  • Ship and water craft decks
  • Entertainment areas, parking lots, hotel entrances, gas stations and many more.
Technical Specifications
TECHNOLOGY AND OPERATION
Energy Source – Solar modules
– External DC feed
– Hybrid – Solar & External DC backup feed
Energy consumption 12V-24V DC, 160mA
Illumination technology 24 x Ultra-bright 5/3mm LEDs.
Operating temperature range -22F to +185F / -30C to +85C
Warranty 2 years
ILLUMINATION PROPERTIES
Available Flash Patterns Controllable – Flashing, Steady or Sequential
Available colors Lighting intensity (mcd) min / max / angle White: 6o00 mcd / 8600 mcd     45°

Blue: 4190 mcd / 6020 mcd       30°

Red: 4180 mcd / 6860 mcd        30°

Green: 4190 mcd / 6020 mcd     45°

Amber: 5800 mcd / 8200 mcd   30°

Light Visibility Distance Up to 3,280 feet / 1km
(varies according to weather conditions)
MATERIAL AND DESIGN
LED protector UV-treated Polycarbonate
Case Aluminum & Anti-corrosion stainless steel
Compressive Strength 1,000kg/cm

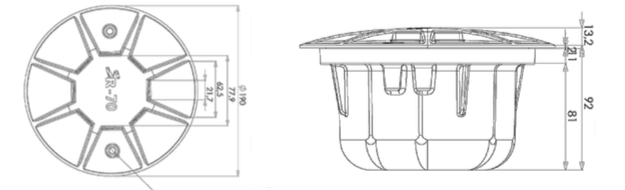

Dimensions – Body Body: ? 7.48” x 4.13” / ?190mm x 105.2mm
Raising above grade  0.51? / 13.2mm
Weight 6.61lbs / 3kg
Water Protection IP68

r8 image 2

Spec Sheet

Download Spec Sheet
