Lightmark S20™

LightMark S20™ is a low surface profile model of the LightMark series, designed for uni-directional or bi-directional lane delineation. LightMark S20™’s special dome shape allows it to be well integrated with the road surface resulting in minimal wear and tear and
a high level of safety.
LightMark S20™ is extremely durable and rigid and is available in a variety of LED colors and lighting configurations.
The brushed-metal or smooth chrome finishes enhance design possibilities for any installation environment.

Key Features
  • More wear and tear resistant and lasts longer than above ground devices
  • Designed to withstand the weight load of heavy trucks and trailers
  • Snow-plow resistant
  • Safer for light vehicles such as motorcycles which are very vulnerable to uneven road surfaces (especially at high speeds)
  • Vandal resistant
Uses and Applications Guide
  • Lane deliniation

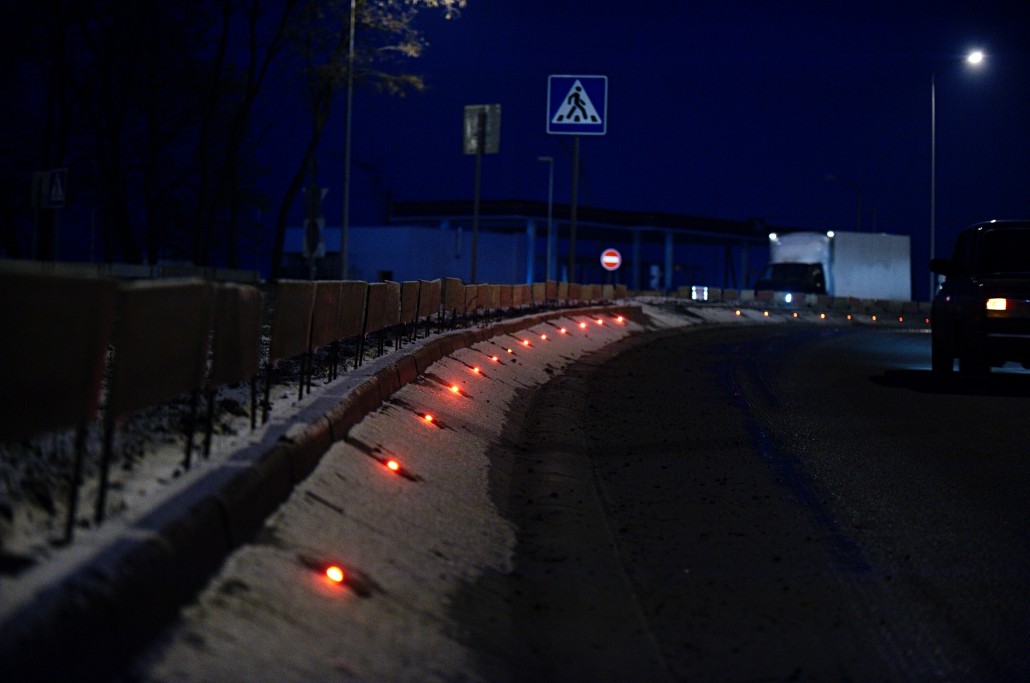

  • Shoulder marking
  • Lane dividers
  • Safety guide rails
  • Curves and turns

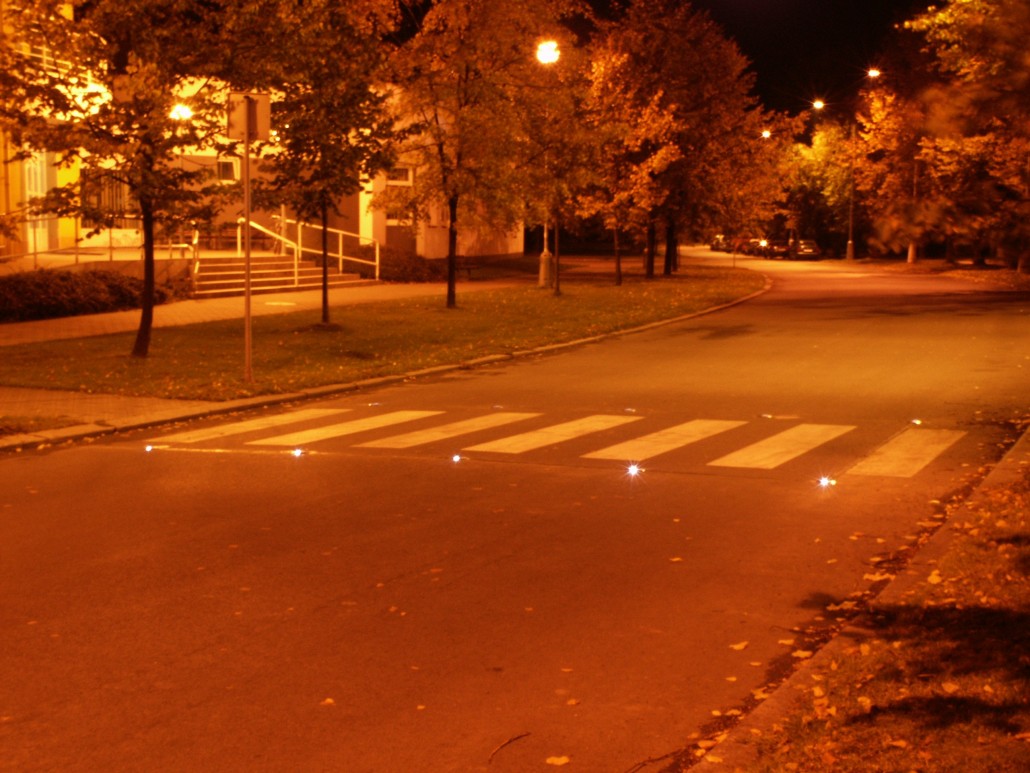

  • Crosswalks
  • Speed humps
  • Traffic circles / islands
  • General traffic calming
  • Security barricades
  • Marking of underground cables
  • Fire hydrant marking
Technical Specifications
TECHNOLOGY AND OPERATION
Solar Panel Type Mono-Crystalline
Illumination Technology 1 / 2 / 3 / 4 Ultra-bright Chip L.E.D.
Energy Storage Ultra-Capacitor
Charging Time 3 Hours (sunny) to 8 hours (cloudy or rainy)
Temperature Range -13F to +185F / -25C to +85C
Water Resistance IP 68
ON/OFF Level 150 lux / 370 lux
Operation per Charge Cycle Up to 16 hours
Warranty 2 years
ILLUMINATION PROPERTIES
Available Flash Patterns Steady Flashing
Available Colors White, Blue, Red, Green, Amber
Light Visibility Distance Up to 3,300 feet / 1km (varies according to weather conditions)
MATERIAL AND DESIGN
Top Cover UV-treated Polycarbonate
Body Aluminum
Compressive Strength 1,000kg/cm
Dimensions – Body ?5?11/16? x H 3? / ?143mm x H 75mm Pit depth 3? / 75mm Above surface 3/8? / 10mm (center of dome)
Weight 2.65lbs / 1.2kg
Spec Sheet

Download Spec Sheet

Installation Manual

Download Installation Manual

Glue

Download Spec Sheet

Ordering Guide

Ordering Guide
