Intelligent Ice Detector System

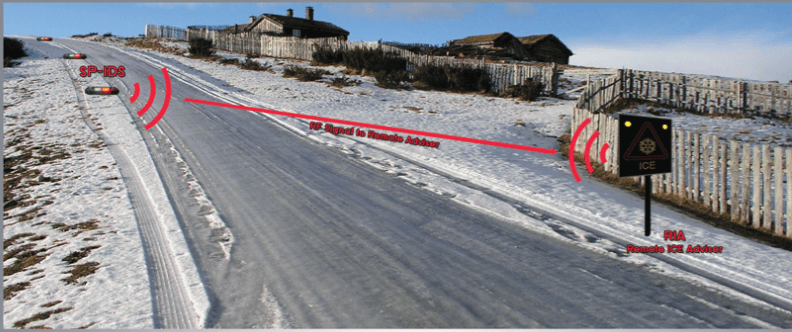

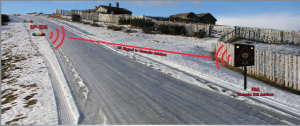

Very powerful ice detection system with humidity sensor and an intelligent temperature reader. The system works with solar energy, allowing the placement of the system in any critical point of a road.
This product and with the presented functionalities it’s a step forward on the detection of dangerous places due to the ice formation.
- RF Transmitter, integrated humidity and temperature sensors
- Transmission Range: 820 feet
- Frequency: 433mhz
- Data Rate: Up to 9.6 kbps
- Power Supply: 12 V DC / standard or solar
- Warning signal activates via Receptor Module (RIA)
- Ultra Bright LED
- Green: No Ice
- Red: Ice Detected
Unit: Fahrenheit (F°)
RH Accuracy: +/- 3.5% RH, 0-100% RH non-condensing 25°C, 5Vdc supply.
RH Interchangeability: +/- 5% RH, 0-660% RH; + 8% @ 60-100% RH Typical
RH Hysteresis +/- 3% of RH Span Maximum
RH Repeatability: +/- 0.5% RH
RH Response time, 1/e: 15s in slowly moving air
RH Stability: +/-0.2% RH Typical at 50% RH in 1 year
Supply Voltage : 4.0 Vdc to 5.8 Vdc
Supply Current 500 uA Max.
Operating Humidity Range: 0-100% RH, non condensing
Operating Temperature Range: -40°F to 185°F
