Bright A™

Description
Key Features
Technical Specifications
Spec Sheet
IES
Description

BRIGHT-A is designed to replace up to 400W HPS lamps. Traditional in appearance while providing unmatched overhead lighting performance and energy savings.

Key Features

? Rugged extruded aluminum housing.
? Double wings enlarge heat dissipation area which provides exceptional thermal
management.
? Corrosion resistant polyester powder painted 100?m thickness.

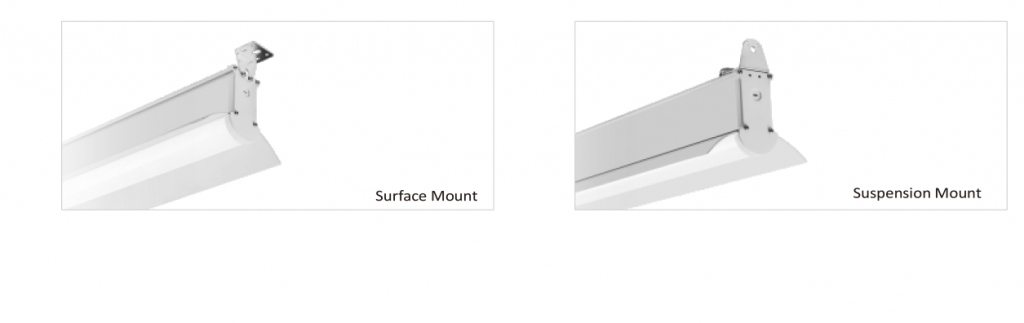

? Surface mount and suspension mount available.
? High quality LEDs, driver and components, e.g. MOLEX, WAGO connectors.
? Multiple lighting control options are available, e.g. motion sensor, 1-10V.
? 5 years limited warranty available.

Technical Specifications


Bright A™

Power 120/160/200W
Input 120-277VAC or 220-240VAC or 347-480VAC or 12-24VDC
PF >0.95
THD <20%
L85 >60,000H
Operating Temperature -40F- 122F
Efficacy 120-140lm/W
ANSI CCT 3000K/4000K/5000K/5700K
Min CRI 70* or 80 or 85
IP Rating IP67
SPD  Optional
Dali /
1-10V Optional
Photocell  /l
Smart Control Optional
Optic(IESNA) Type V
Color Options  White


Spec Sheet

Spec Sheet

IES

Download IES Here
