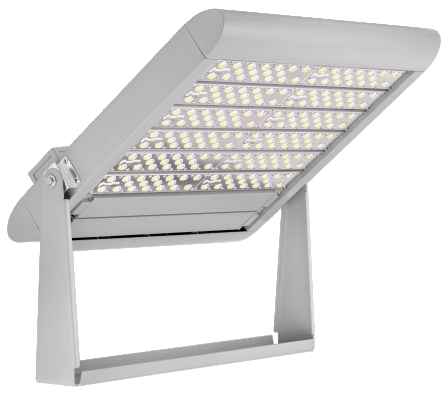

Aurora U Series™

Description

As the name implies, the AURORA series is a truly high lumen output solution designed to produce the same illumination performance of existing metal halide lamps at a fraction of the energy cost.

Key Features

? Slim & low profile design that minimizes wind load.
? Ideal alternative to traditional 1000/2000/4000W Metal Halide light.
? Corrosion resistant polyester powder painted 100?m thickness.
? Meets a 1000-hour salt spray certification per ASTM B117/ ISO 9227:2012.
? Over 20 optical lenses are available for virtually any application.

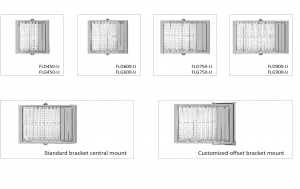

? The trunnion mount bracket allows for great mounting flexibility.
? 10 years limited warranty available.

Technical Specifications


U- Series™

Power 450-900W
Input 120-277VAC or 220-240VAC or 347-480VAC or 12-24VDC
PF >0.95
THD <20%
L85 >60,000H
Operating Temperature -40F- 122F
Efficacy 120-140lm/W
ANSI CCT 3000K/4000K/5000K/5700K
Min CRI 70* or 80 or 85
IP Rating IP67
SPD  10KA* or 20KA
Dali Optional
1-10V Optional
Photocell  /
Smart Control /
Optic(IESNA) Type I, Type II, Type III, Type IV, Type V
Color Options  Grey/Black/Bronze/White
